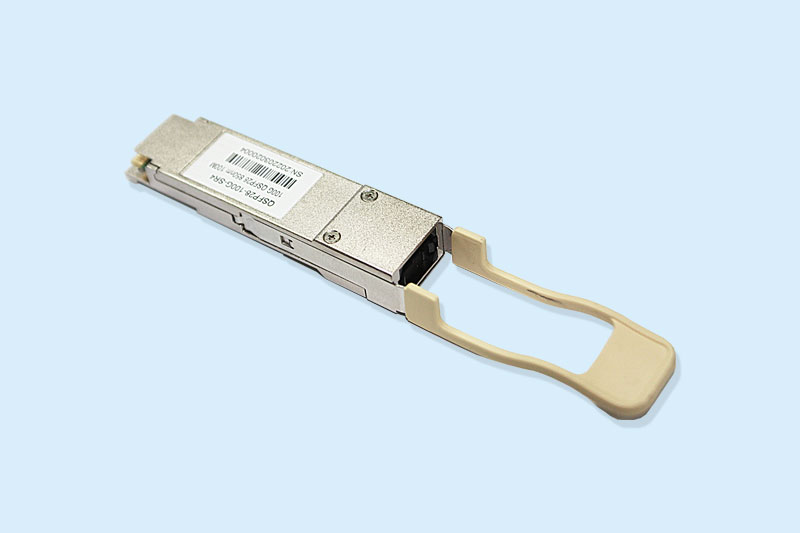

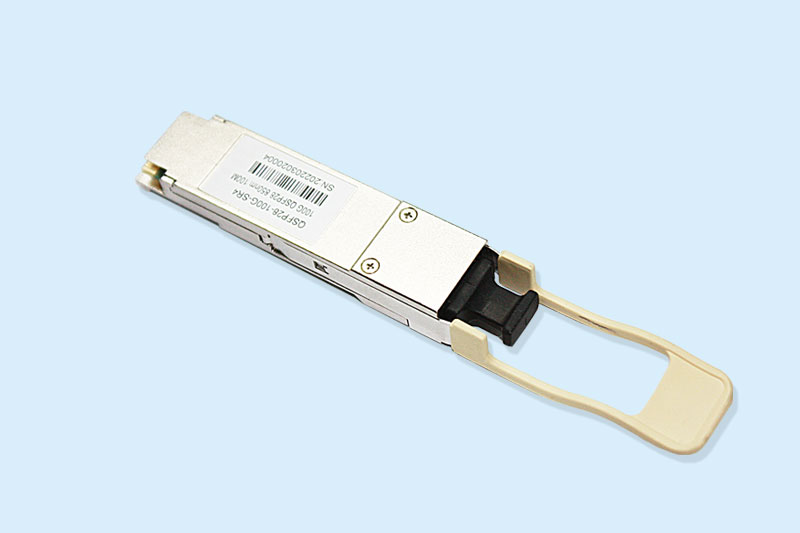

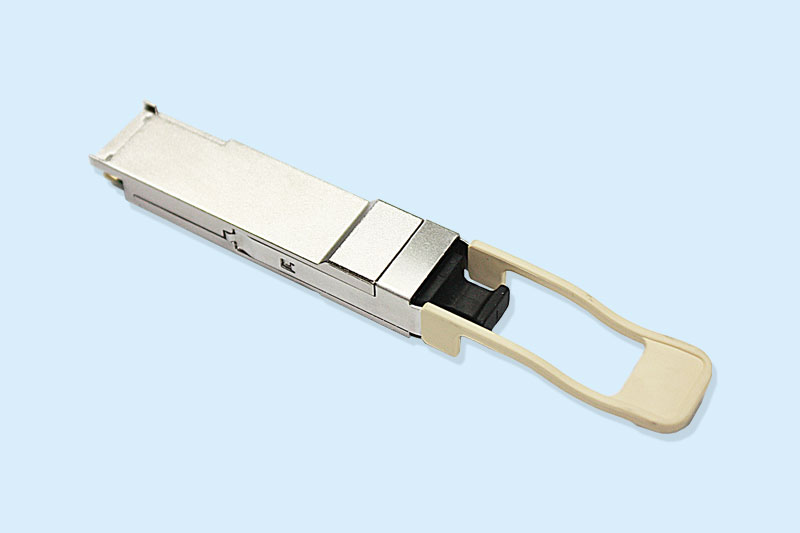

100G多模光模块QSFP28-100G-SR4
  • 产品参数

Product Features

•MTP/MP0 optical connector

•Single +3.3V power supply

•Hot-pluggable QSFP28 MSA form factor

•Up to 100m OM4 MMF Distance

•4x28G Electrical Serial Interface (CEI-28G-VSR)

•AC coupling of CML signals

•Low power dissipation(Max:3.5W)

•Built in digital diagnostic function

•Operating case temperature range:0℃ to 70℃

•Compliant with 100GBASE-SR4

•I2C Communication Interface

Applications

•100GBASE-SR4

•Infiniband QDR/DDR/SDR

•100G Datacom connections




Ordering Information

Part Number

Description

QSFP28-100G-SR4

 QSFP28 SR4 100m OM4, 0~70℃, with Digital Diagnostic Monitor
