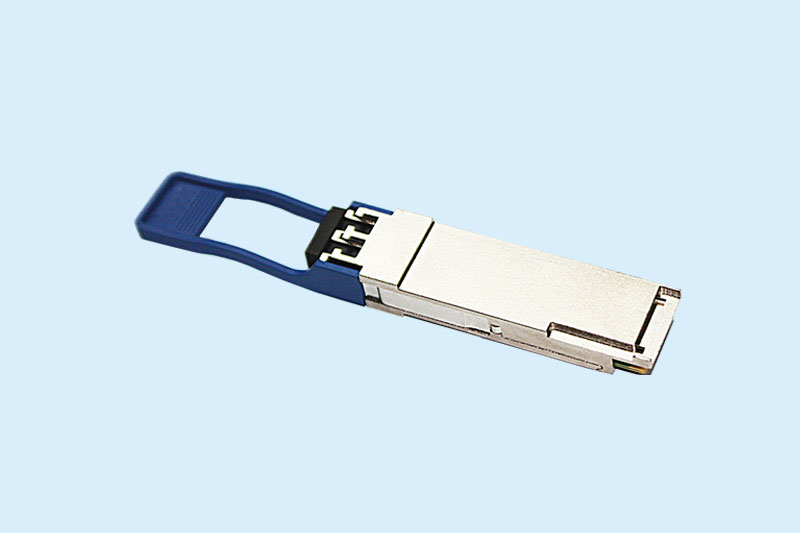

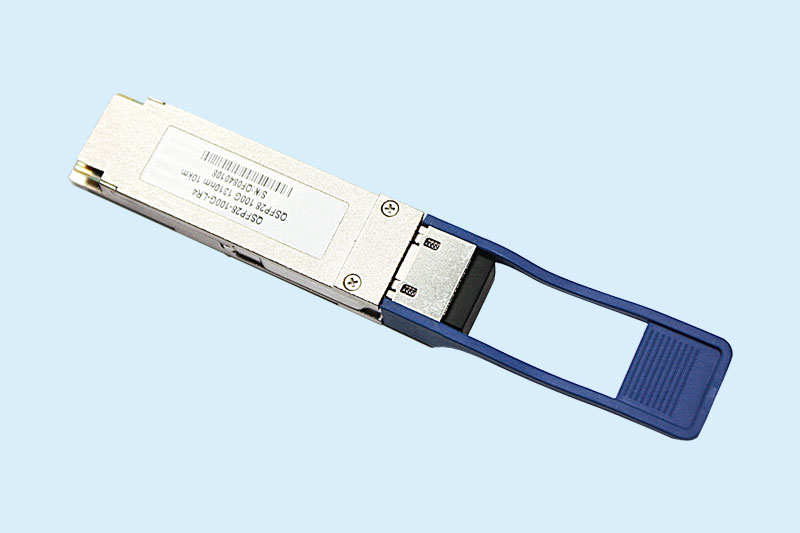

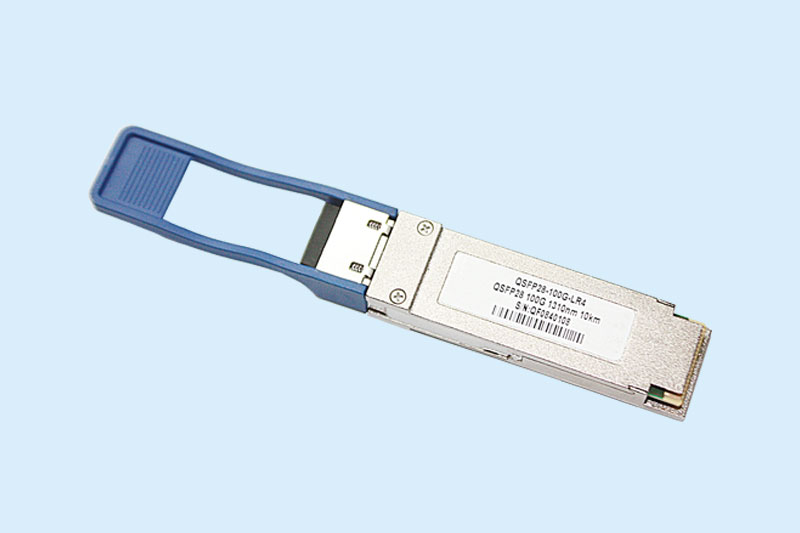

100G单模模光模块QSFP28-100G-LR4
  • 产品参数

Product Features

• Duplex LC receptacle optical interface

• Single +3.3V power supply

• Hot-pluggable QSFP28 MSA form factor

• 4x25G Electrical Serial Interface

• Compliant with 4x28G(CEI-28G-VSR)

• AC coupling of CML signals

• Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

• Receiver: 4x25Gb/s PIN ROSA

• Low power dissipation(Max:6W)

• Built in digital diagnostic function

• Operating case temperature range:0℃ to 70℃

• Compliant with 100GBASE-LR4

• I2C Communication Interface



Applications

• 100GBASE-LR4

• Infiniband QDR and DDR interconnects

• 100G Datacom connections
