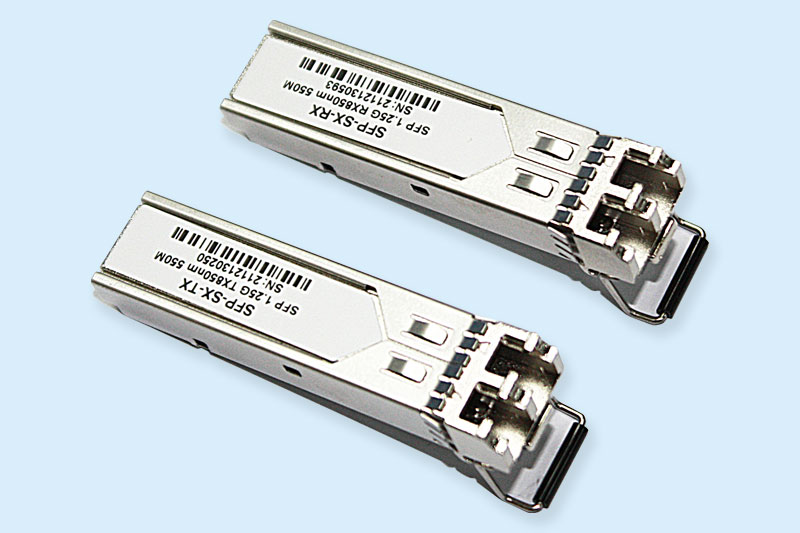

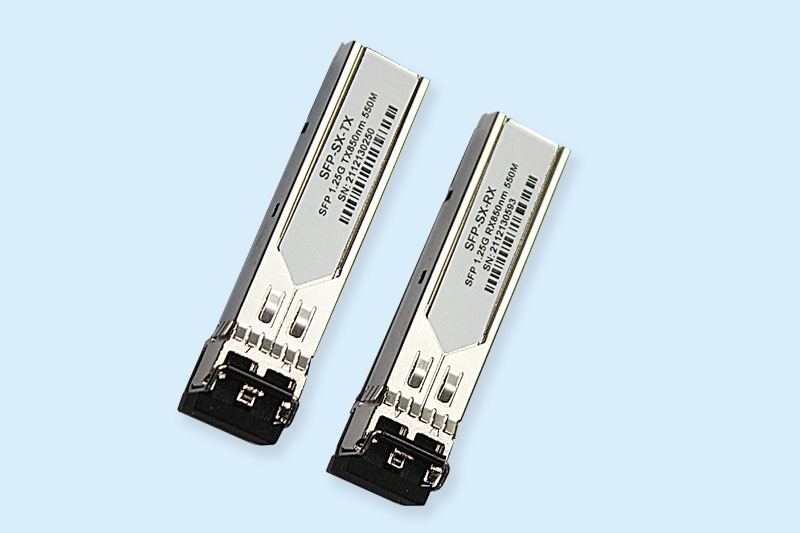

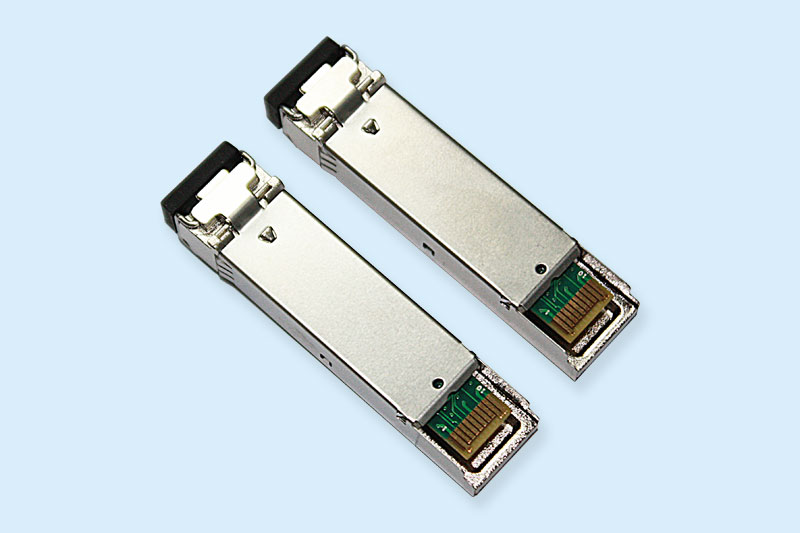

femrices’ SFP-SX-TX, The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA

Product Features

●Supports 1.25Gbps/1.0625Gbps bit rates

●Duplex LC connector

●Hot pluggable SFP footprint

●850nm VSCEL laser transmitter and PIN photo-detector

●Applicable for 550m on 50/125µm, 300m on 62.5/125µm MMF connection

●Low power consumption, < 0.5W

●Digital Diagnostic Monitor Interface

●Compliant with SFP MSA and SFF-8472

●Very low EMI and excellent ESD protection

●Operating case temperature:

Commerical:0 to 70 °C

Applications

●Gigabit Ethernet

●Fiber Channel

●Switch to Switch interface

●Switched backplane applications

●Router/Server interface

●Other optical transmission systems
